Patrik AEON Fuselage — available in Aluminium (beats carbon in stiffness and 3D strength — best cost/performance ratio) and Titanium (beats aluminium and carbon — more stiffness, reduced diameter outline, less drag, PWA pro choice). Patent pending Self-Lock Dual-Box mast connection + 2× TX30 M6 safety bolts. Three variants per length: V1 (max lift, upwind slalom), V2 (medium, crosswind/downwind) and V3 (low power, downwind/speed, max control in strong winds). Available in 100 cm (V1/V2/V3) and 110 cm (V1/V2) lengths. Backwing in 3 positions (0 / −12.5 / −25 mm) with 9 shim angle options (0°–2.0°).
Výhradní distributoři Patrik / AEON pro ČR a SR.Pomůžeme s výběrem správného modelu a materiálu.
Nabízíme i produkty k otestování
Doprava zdarma
od 2000 Kč
od 2000 Kč
Zboží skladem ti dorazí do 24 hodin
Kamenná prodejna v Praze
Detailní popis produktu
Aluminium vs. Titanium
Aluminium
Beats carbon in compatibility, stiffness and lightweight 3D strength. Best cost/performance ratio. Available in all V1/V2/V3 variants and 100/110 cm lengths.
Titanium
Beats aluminium and carbon — even more stiffness, reduced diameter outline with less drag and improved 3D strength. The choice of PWA pros.
Connections
Mast–Fuselage: Patent pending "Self-Lock Dual-Box" — the safest and stiffest connection available, backed up with 2× TX30 M6 extra safety bolts.
Frontwing: Flat surface with centre recess + 3× TX30 M8 bolts — stiffest and most reliable frontwing connection available.

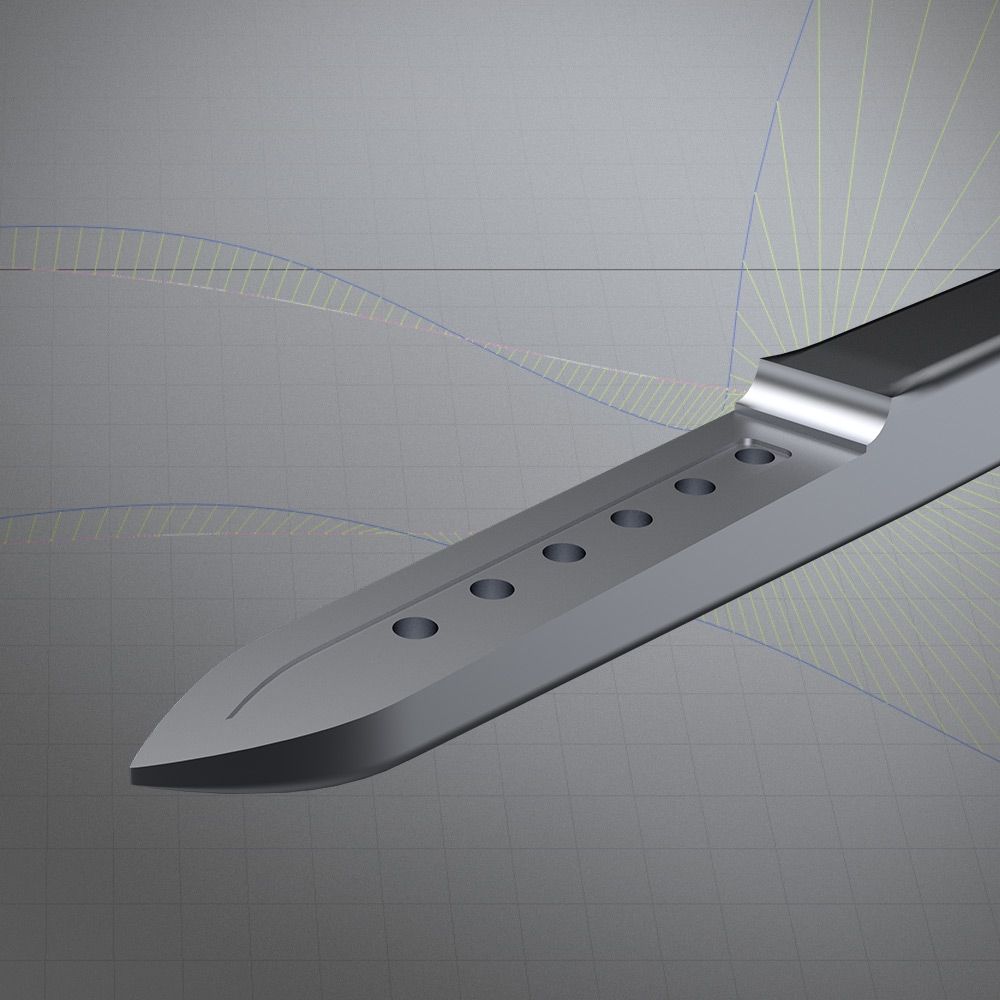

Backwing: Flat surface with centre recess + multiple M6 inserts — precise backwing trim options with stiff and reliable connection.
Modely — V1 / V2 / V3
| Model | Délka | Charakteristika | Materiál |
|---|---|---|---|
| 100 V1 | 100 cm | Highest power ratio — cross-/upwind slalom in any conditions. Most lift in light winds. | Alu / Ti |
| 100 V2 | 100 cm | Medium power ratio — crosswind to downwind slalom in any conditions. | Alu / Ti |
| 100 V3 | 100 cm | Lower power ratio — downwind slalom and speed with max. control in strong winds. | Alu / Ti |
| 110 V1 | 110 cm | Highest power ratio — upwind/downwind course racing in any conditions. | Alu / Ti |
| 110 V2 | 110 cm | Medium power ratio — upwind/downwind course racing in any conditions. | Alu / Ti |
More sizes for Windsurf Freeride and Winging Race, Wave, Freestyle to come.
Backwing pozice a úhly
| Pozice | Offset | Efekt |
|---|---|---|
| Rear | 0 mm | Maximum stability and control |
| Middle | −12.5 mm | More pitch/power reactivity, angle of attack unchanged |
| Forward | −25 mm | Most pitch/power reactivity, angle of attack unchanged |
Available angle shims: 0° / 0.25° / 0.5° / 0.75° / 1.0° / 1.25° / 1.5° / 1.75° / 2.0°
Concept
Design Goals. The target was to create high-performance foils with full compatibility across all foiling sports and disciplines — from the "whatever-it-takes world cup level" to more price-sensitive customers. The AEON has been designed for maximum control, easing the challenge of mastering 3-dimensional flight for both the skilled world cup rider and the intermediate. One connection system for wind-, wing-, prone- and kite-foiling is a massive economic advantage for multi-sport users.
Man vs. Machine. The massive success of the AEON in both Windsurfing and Wing-Foiling is the result of the PATRIK R&D crew's precise and hard work. Products are developed in a unique hybrid process where the human brain (knowledge) and hands (feeling) clearly lead the computer-aided design — not the other way around. Fun fact: CFD programs are fed with data based on past practical tests and can never calculate completely new results outside their given data range. The PATRIK crew develops and tests gear outside that software range — and the results later update those programs.
Single Parts vs. Sets. All parts available separately for magic custom setups, or as pre-configured sets for the best budget combo.
PWA Pro Setups
Michele Becker — PWA Slalom
95 Dim-S · 400 DNA-H · 100 V2 Ti · 150 Backwing rear +1°
95 Dim-S · 450 DNA-H · 100 V2 Ti · 150 Backwing rear +1°
95 Dim-S · 550 DNA-H · 100 V1 Ti · 160 Backwing middle +1°
Thomas Goyard — 4.5 DEFI / 8.0 One Hour
4.5: 95 Dim-S · 365 DNA-X · 100 V3 Ti · 150 Backwing rear +0.75°
8.0: 95 Dim-S · 550 DNA-H · 100 V2 Ti · 150 Backwing rear +1.25°
Alex Cousin — 6.0 PWA Slalom
95 Dim-S · 375 DNA-H · 100 V3 Ti · 150 Backwing rear +1.5°
Nico Warembourg — 4.2 DEFI / 8.0 Freerace / 4.5 Speed
4.2: 95 Dim-S · 375 DNA-H · 100 V1 Ti · 160 Backwing rear +1.75°
8.0: 95 Dim-M · 750 DNA-M · 100 V1 Alu · 195 Backwing rear +0.75°
4.5 speed: 95 Dim-S · 375 DNA-H · 100 V3 Ti · 150 Backwing rear +1.25°
Elia Colombo — 9.0 Course Racing
100 Dim-L · 900 DNA-H · 110 V1 Alu · 195 Backwing rear +1°
Aluminium vs. Titanium+
Aluminium
Beats carbon — best cost/performance ratio. Stiff, light, 3D strength.
Titanium
Beats alu and carbon — more stiffness, thinner outline, less drag. PWA pro choice.
Connections+
Mast–Fuselage: Patent pending Self-Lock Dual-Box + 2× TX30 M6 safety bolts.
Frontwing: Flat surface + centre recess + 3× TX30 M8 bolts.
Backwing: Flat surface + centre recess + multiple M6 inserts for precise trim.
Modely V1 / V2 / V3+
| Model | Charakteristika | Mat. |
|---|---|---|
| 100 V1 | Max lift, cross-/upwind slalom | Alu/Ti |
| 100 V2 | Medium — crosswind/downwind | Alu/Ti |
| 100 V3 | Low power — downwind/speed | Alu/Ti |
| 110 V1 | Max power — course racing | Alu/Ti |
| 110 V2 | Medium — course racing | Alu/Ti |
Backwing pozice a úhly+
| Pozice | Offset | Efekt |
|---|---|---|
| Rear | 0 mm | Max stability |
| Middle | −12.5 mm | More reactivity |
| Forward | −25 mm | Most reactivity |
Shims: 0° / 0.25° / 0.5° / 0.75° / 1.0° / 1.25° / 1.5° / 1.75° / 2.0°
Concept+
One system — all foiling sports. Wind, wing, prone, kite — one connection. From world cup to intermediate budget. Maximum control in 3D flight.
Man vs. Machine. Human brain and hands lead the design. PATRIK tests outside CFD software range — results update those programs.
Single parts vs. Sets. All parts separately or pre-configured sets.
PWA Pro Setups+
Michele Becker — PWA Slalom
400/450 DNA-H → 100 V2 Ti · 550 DNA-H → 100 V1 Ti
Thomas Goyard
4.5: 365 DNA-X → 100 V3 Ti · 8.0: 550 → 100 V2 Ti
Alex Cousin — 6.0 PWA
375 DNA-H → 100 V3 Ti
Nico Warembourg
4.2: 100 V1 Ti · 8.0: 100 V1 Alu · 4.5 speed: 100 V3 Ti
Elia Colombo — Course Racing 9.0
900 DNA-H → 110 V1 Alu
Výhradní distributoři Patrik / AEON pro ČR a SR
Pomůžeme s výběrem správného modelu a materiálu.
✕❮![]()
❯
Doplňkové parametry
| Kategorie: | Mast a fuselage |
|---|---|
| ? Fuselage: | 100 cm, 110 cm |
| #sizes_table#: | hidden |
