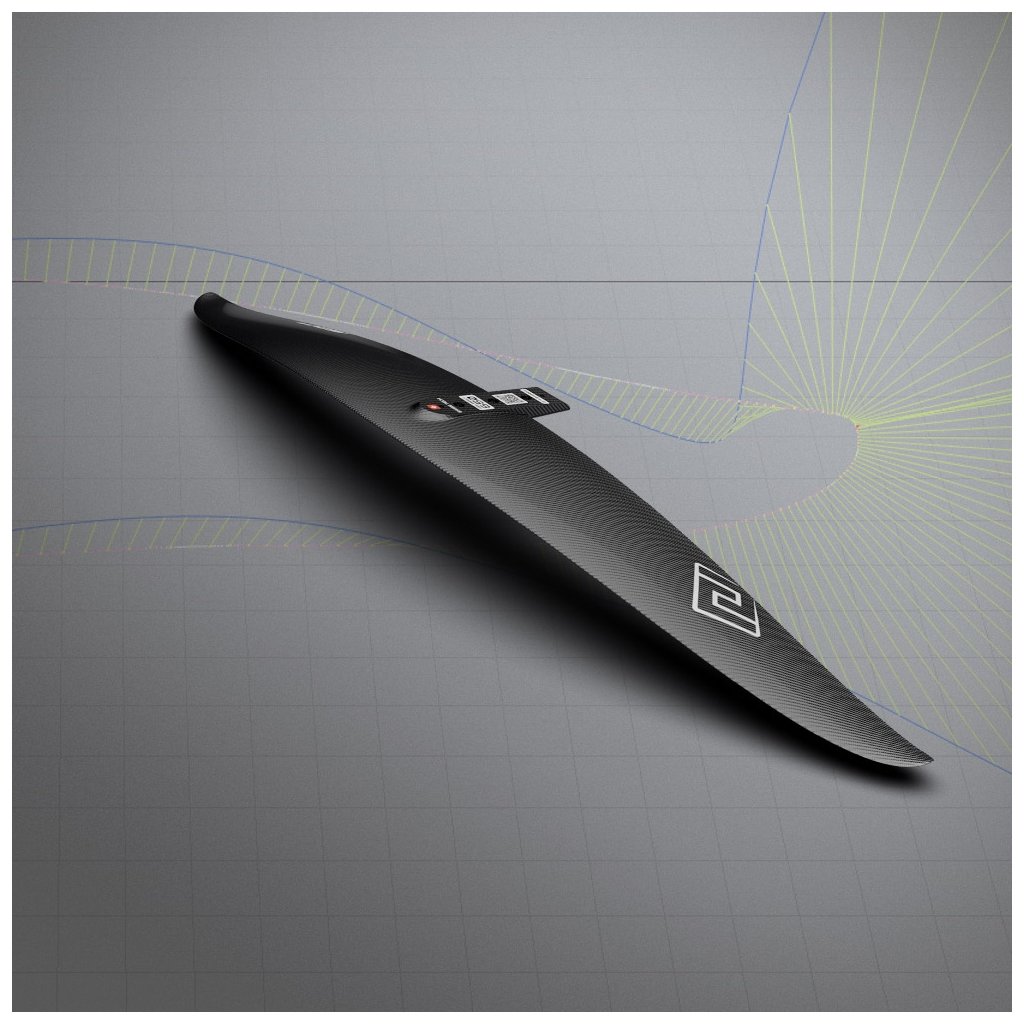

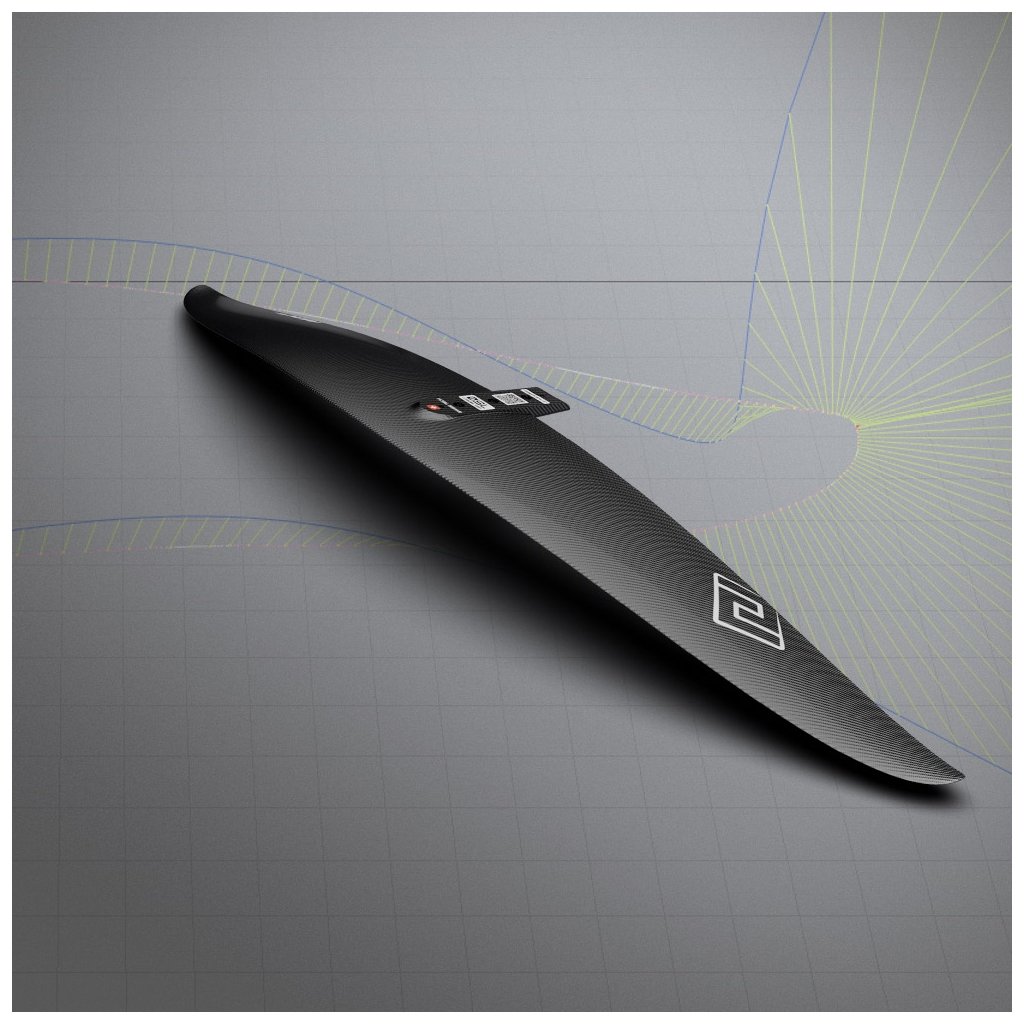

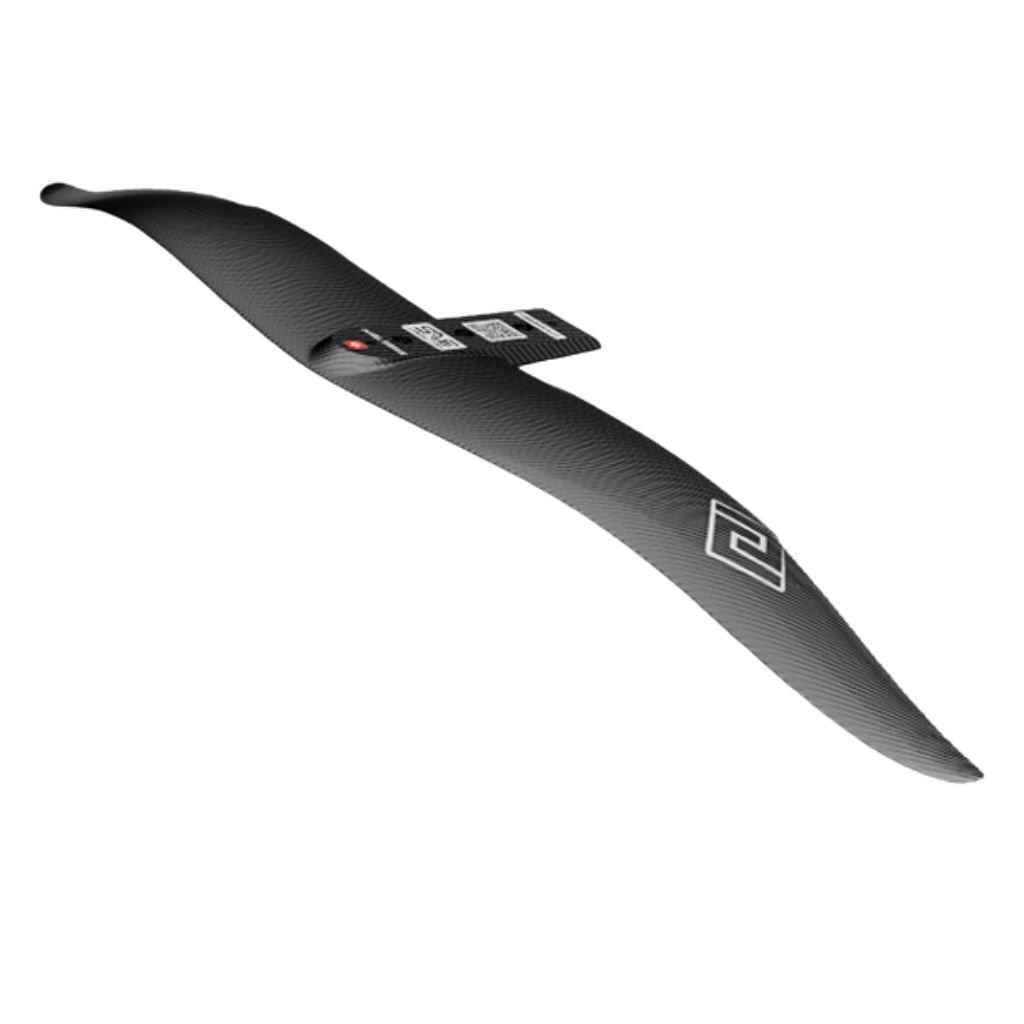

Patrik AEON Frontwings — worldcup performance low-drag frontwings with the best thickness-to-strength ratio on the market. Ultra-stiff with controlled flex patterns, lowest production tolerances in the windsurfing industry. Rideable 50–80 cm² smaller than competitor wings — extended low-end and perfect jibing characteristics. Available in 9 sizes (350–900 cm²) and three construction levels: DNA-M (medium, best value), DNA-H (hard, max control, PWA choice) and DNA-X (xtra hard for the smallest sizes). Fully compatible with AEON masts, fuselages and backwings.
Výhradní distributoři Patrik / AEON pro ČR a SR.Pomůžeme s výběrem správné velikosti a DNA verze.
Nabízíme i produkty k otestování
Doprava zdarma
od 2000 Kč
od 2000 Kč
Zboží skladem ti dorazí do 24 hodin
Kamenná prodejna v Praze
Detailní popis produktu
Overview

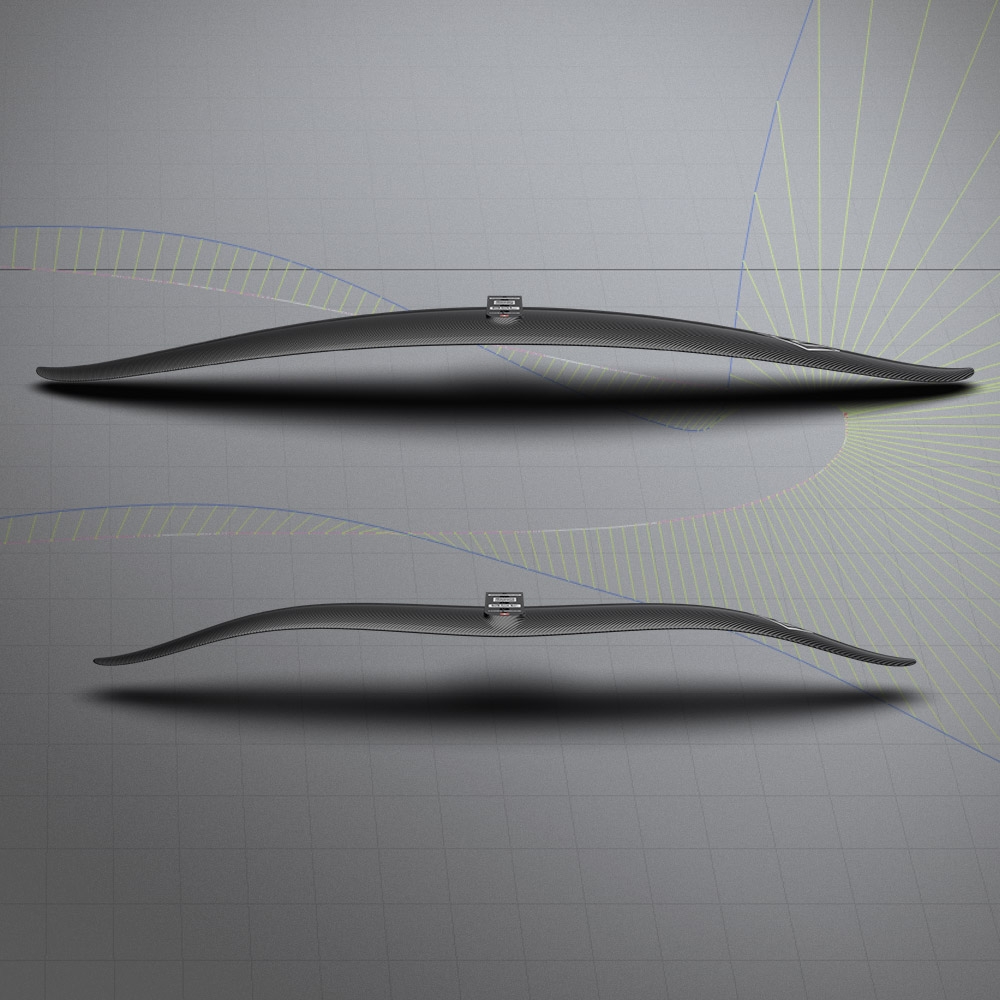

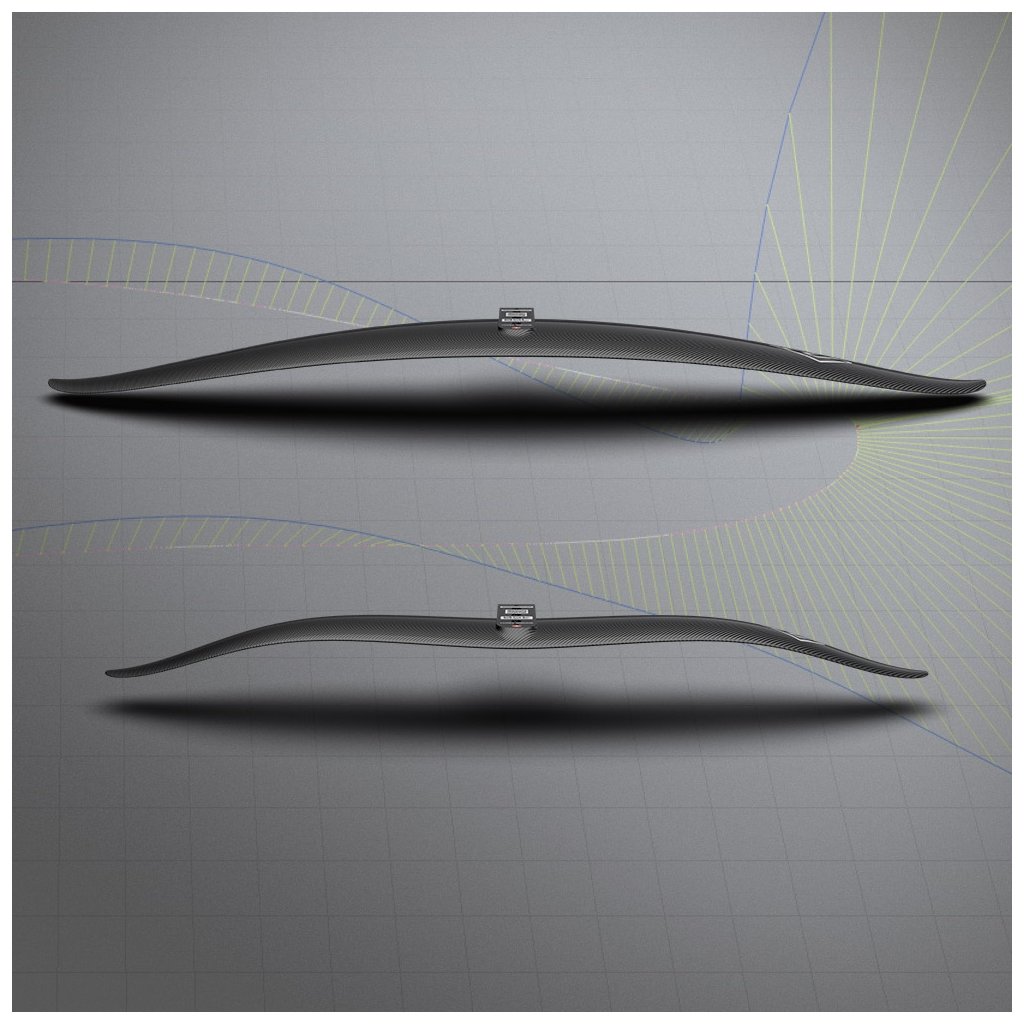

AEON frontwings have the best thickness-to-strength ratio on the market — ultra-stiff wings with controlled flex patterns. Lowest production tolerances in the windsurfing industry. Can be ridden 50–80 cm² smaller than competitor wings while offering extended low-end and perfect jibing characteristics. Available in 9 sizes from 350 to 900 cm² and three construction levels.
Construction — DNA
DNA-M
Medium stiffness. More power for heavy riders and lighter winds. Best cost/performance ratio. Available from 375 cm².
DNA-H
Hard stiffness. Maximum control in high winds, high speed runs and jibes. The choice of PWA pros.
DNA-X

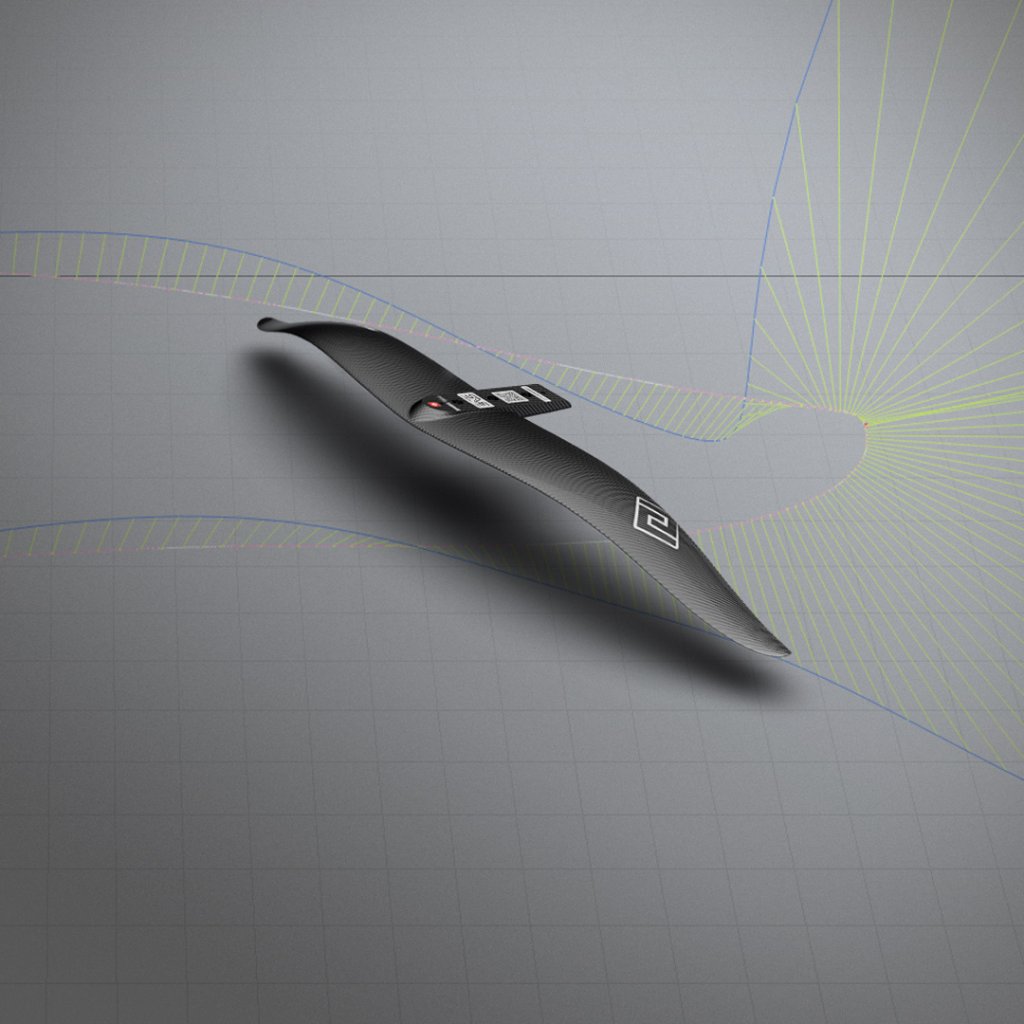

Xtra hard. Special construction for the smallest sizes (350, 365, 400) where profiles are too thin for DNA-M layups. Named "H" on the actual wing.
All frontwings use M8 TX30 Torx screws — more reliable than the M6 screws used by many other brands. Clear coat factory finish seals the carbon layers — do not sand without expert guidance as sanding voids warranty.
Specs
| Size (cm²) | Span | Aspect Ratio | Range of use | Construction |
|---|---|---|---|---|
| 350 | 569 mm | 8.96 | speed, slalom, longdistance | DNA-X |

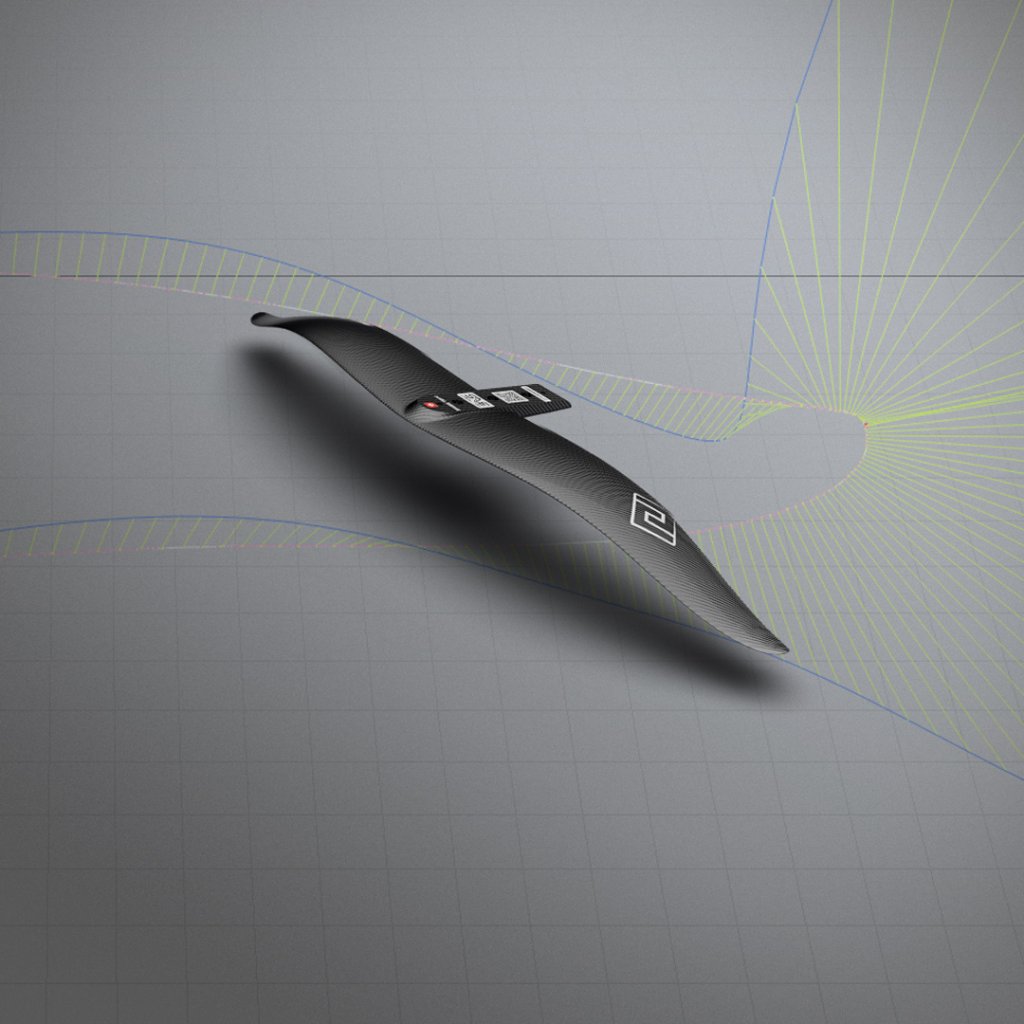

| 365 | 590 mm | 9.54 | speed, slalom, longdistance | DNA-X |

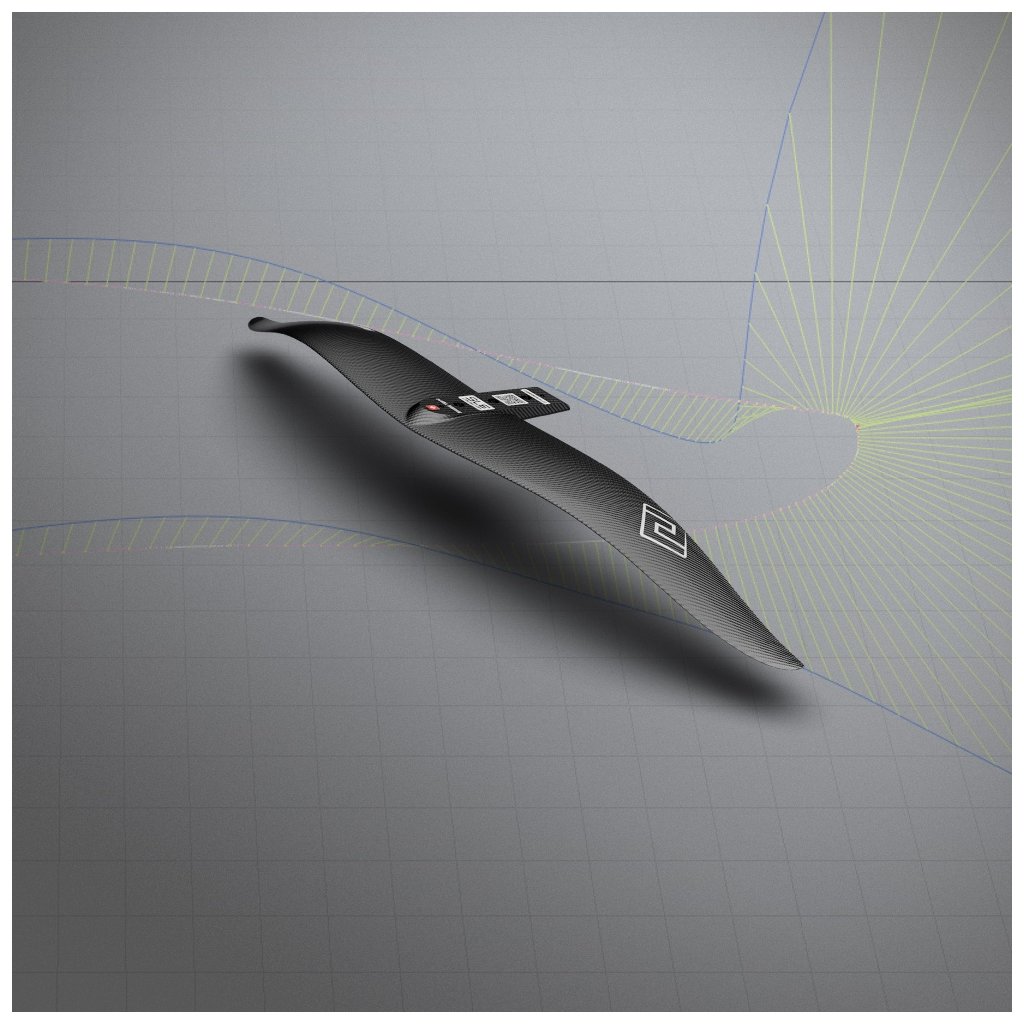

| 375 | 620 mm | 10.25 | speed, slalom, longdistance | DNA-H / DNA-M |
| 400 | 620 mm | 9.61 | high-wind slalom | DNA-X |

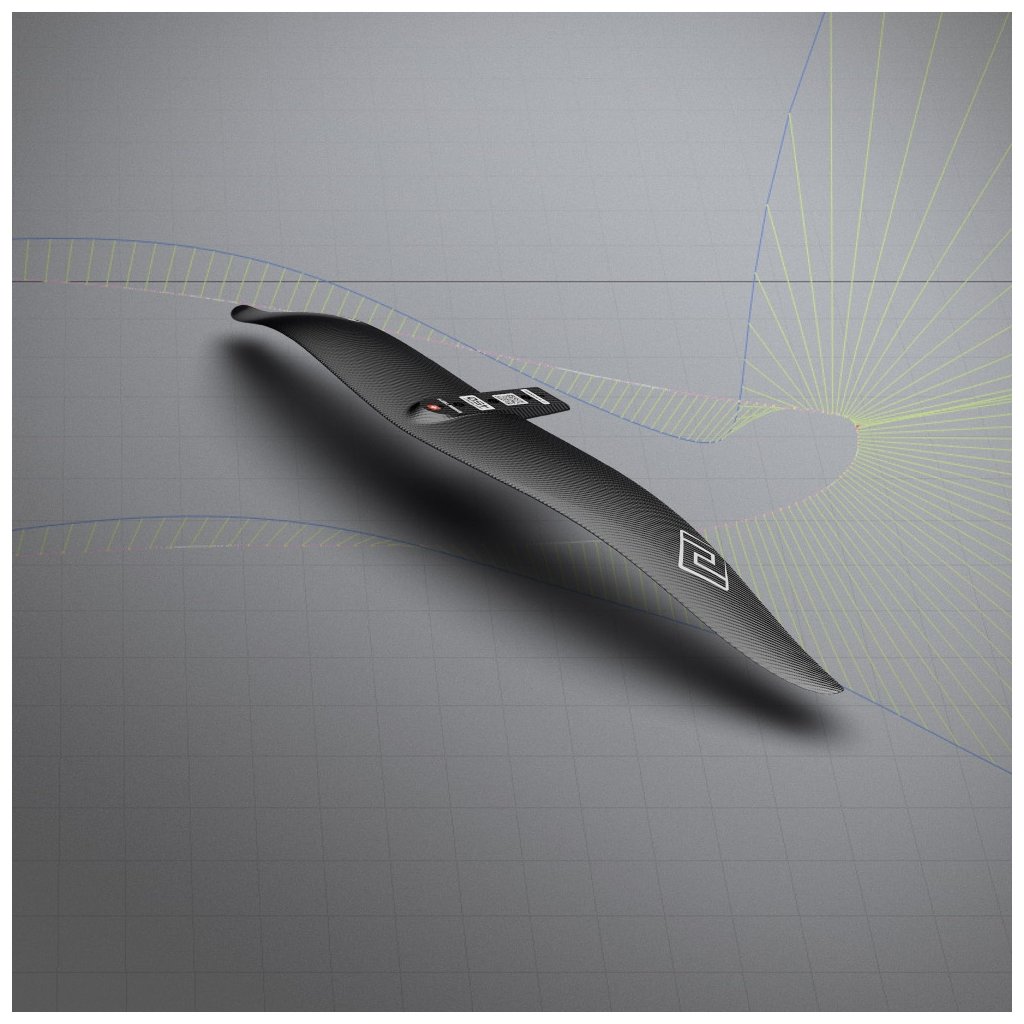

| 450 | 680 mm | 10.28 | slalom, wing speed | DNA-H / DNA-M |
| 550 | 750 mm | 10.23 | slalom, wing racing | DNA-H / DNA-M |
| 650 | 810 mm | 10.09 | low-wind slalom, wing racing | DNA-H / DNA-M |
| 750 | 850 mm | 9.63 | course racing, winging, freerace | DNA-H / DNA-M |
| 900 | 900 mm | 9.00 | course racing, winging, freerace | DNA-H / DNA-M |
Sizes 375–900 available in DNA-H and DNA-M.
Construction
To protect the advantage of having the stiffest parts we won't name any construction secrets for the AEON frontwings.
As the only brand in the history of windsurfing able to successfully produce hollow boards in more than 20 sizes (AirInside), PATRIK's know-how in composite construction technology is literally miles ahead of competitor brands. With the "Fullcore" EPS production setup PATRIK has set the industry benchmark for weight and tolerance quality. With the AEON foil constructions they are leading the industry again — offering the thinnest and most high-aspect designs with the stiffest flex-vs-twist ratio.

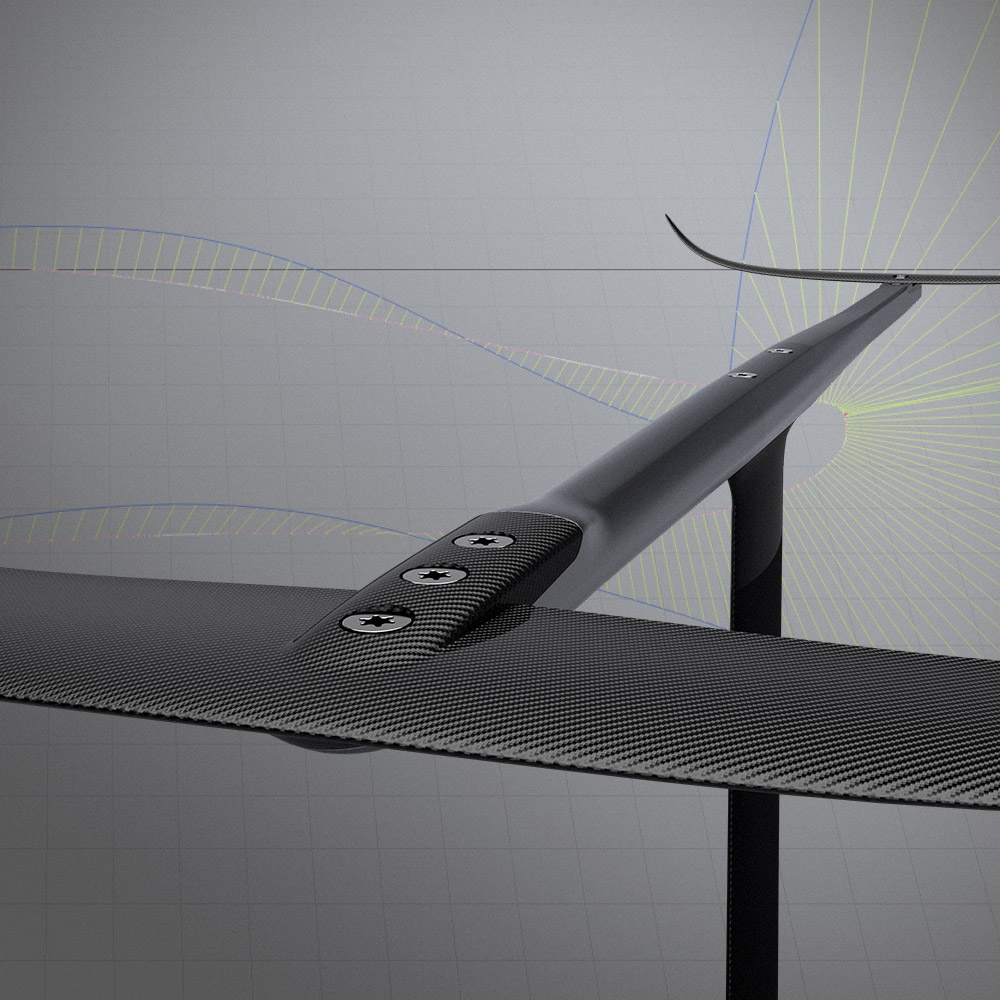

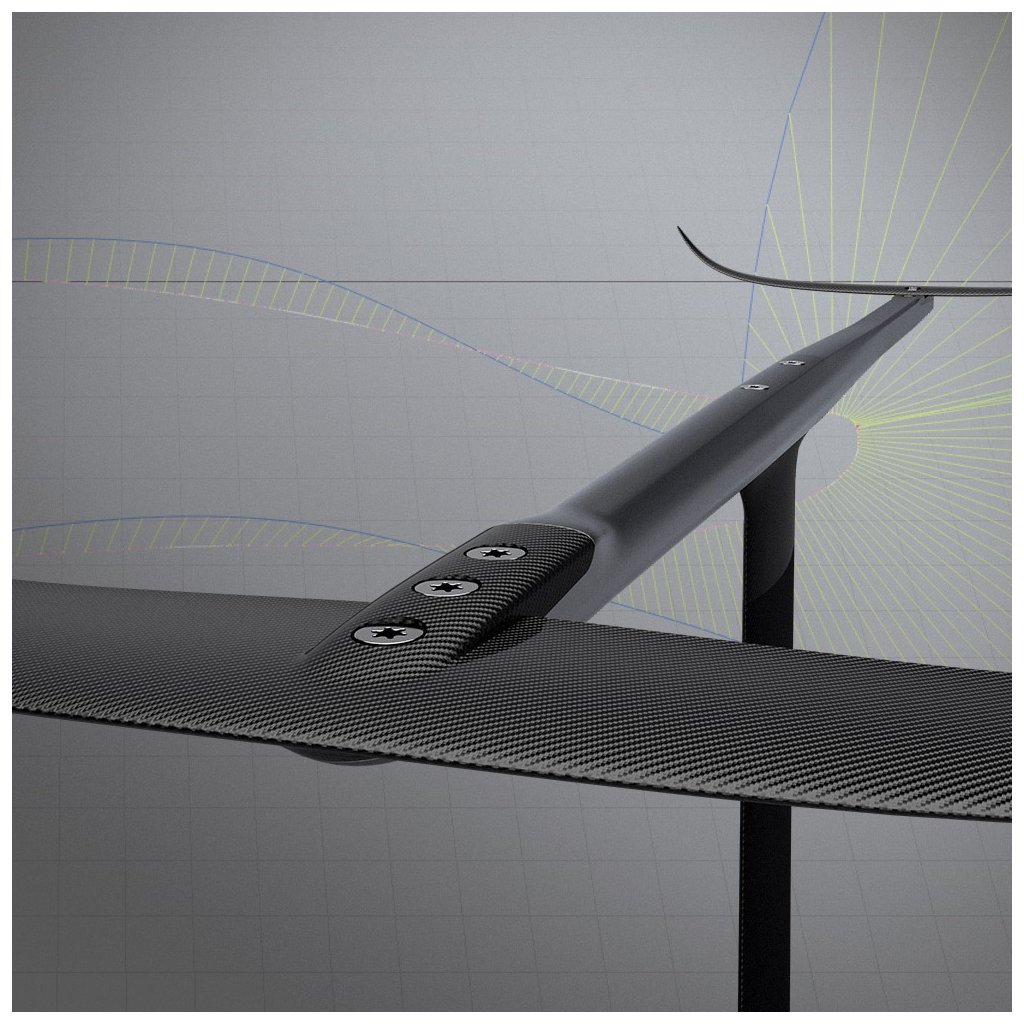

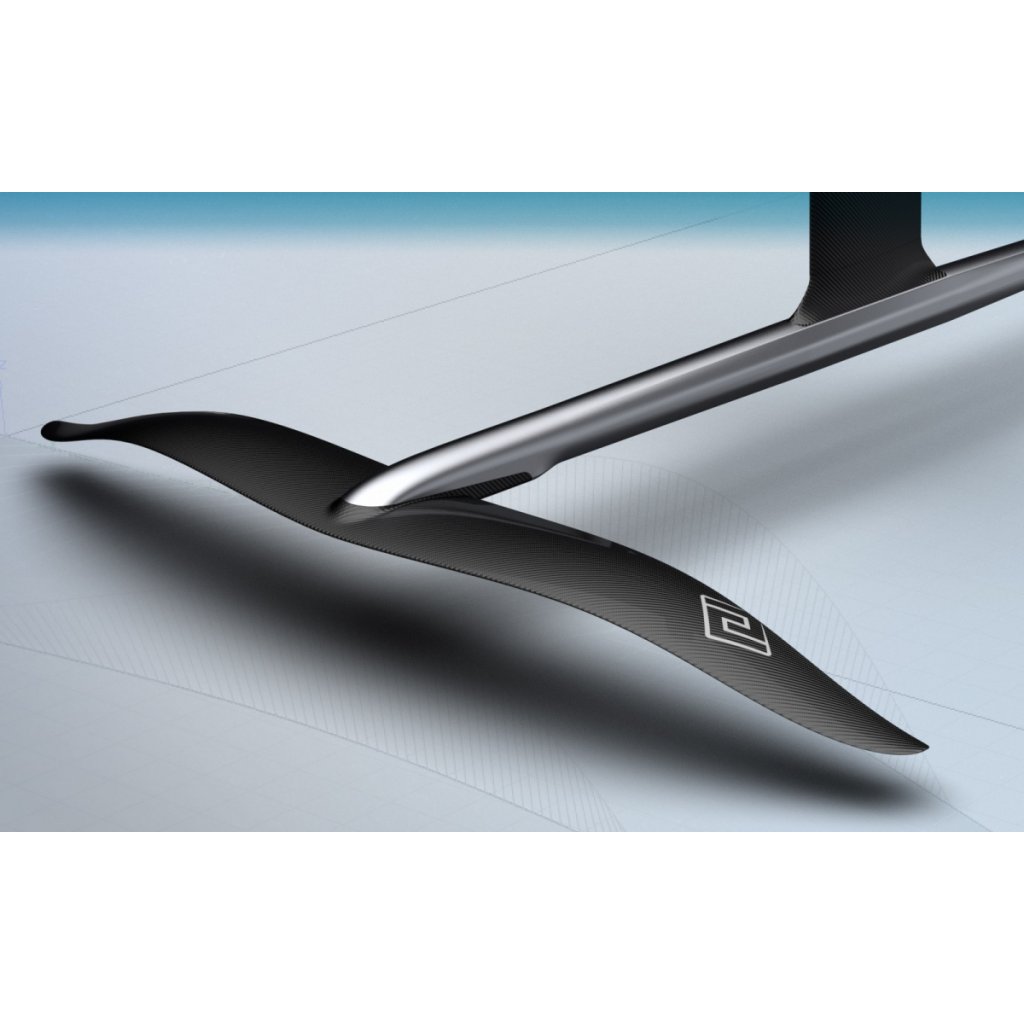

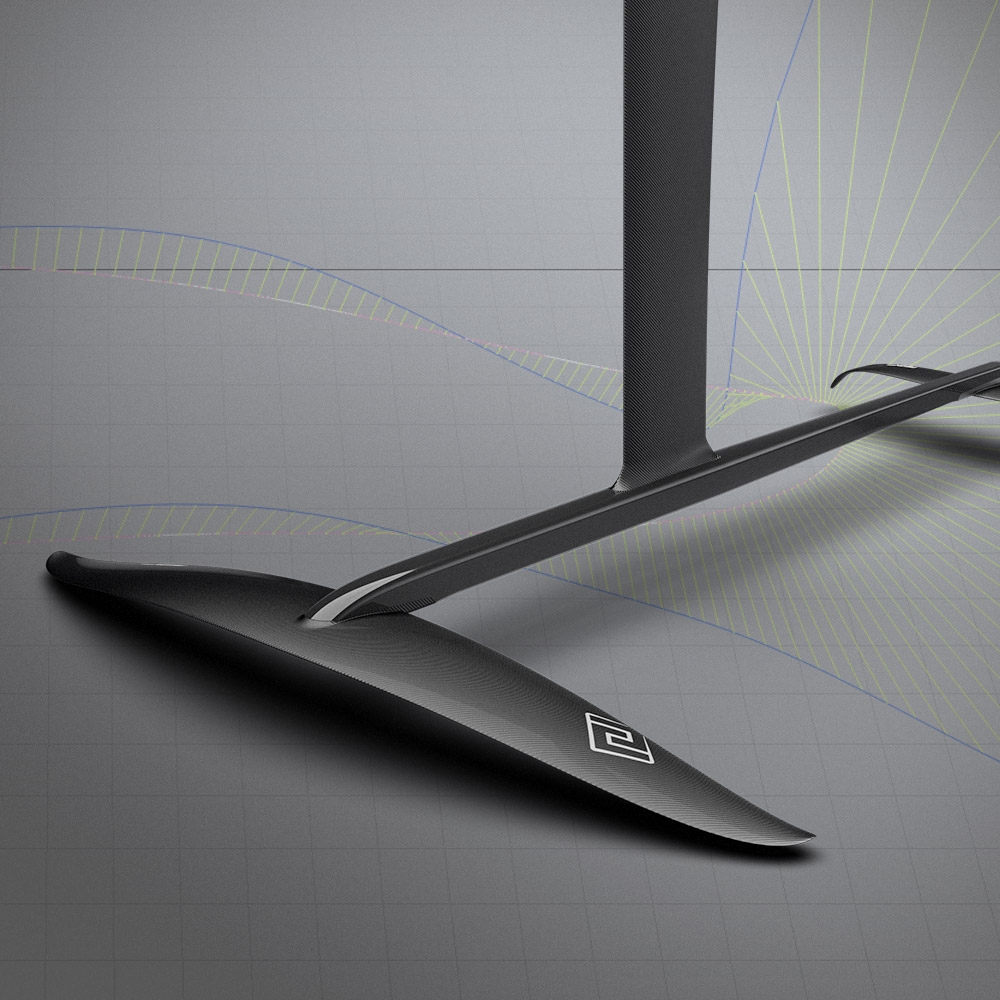

All foil parts are fitted with TX30 Torx screws. All frontwings use M8 TX30 screws to secure to the fuselage — M6 screws as used by many other brands have been tested and found unreliable.
Sanding & Warranty: All AEON carbon parts have a clear coat factory finish that seals the carbon layers. Sanding off this coating — partially or completely — voids the product warranty and is fully at the rider's own risk. Sanded parts change from glossy to matt finish. There is no general need to extensively sand AEON parts given the advanced production process. Only do so if you're 100% sure about what you're doing and why.
Concept

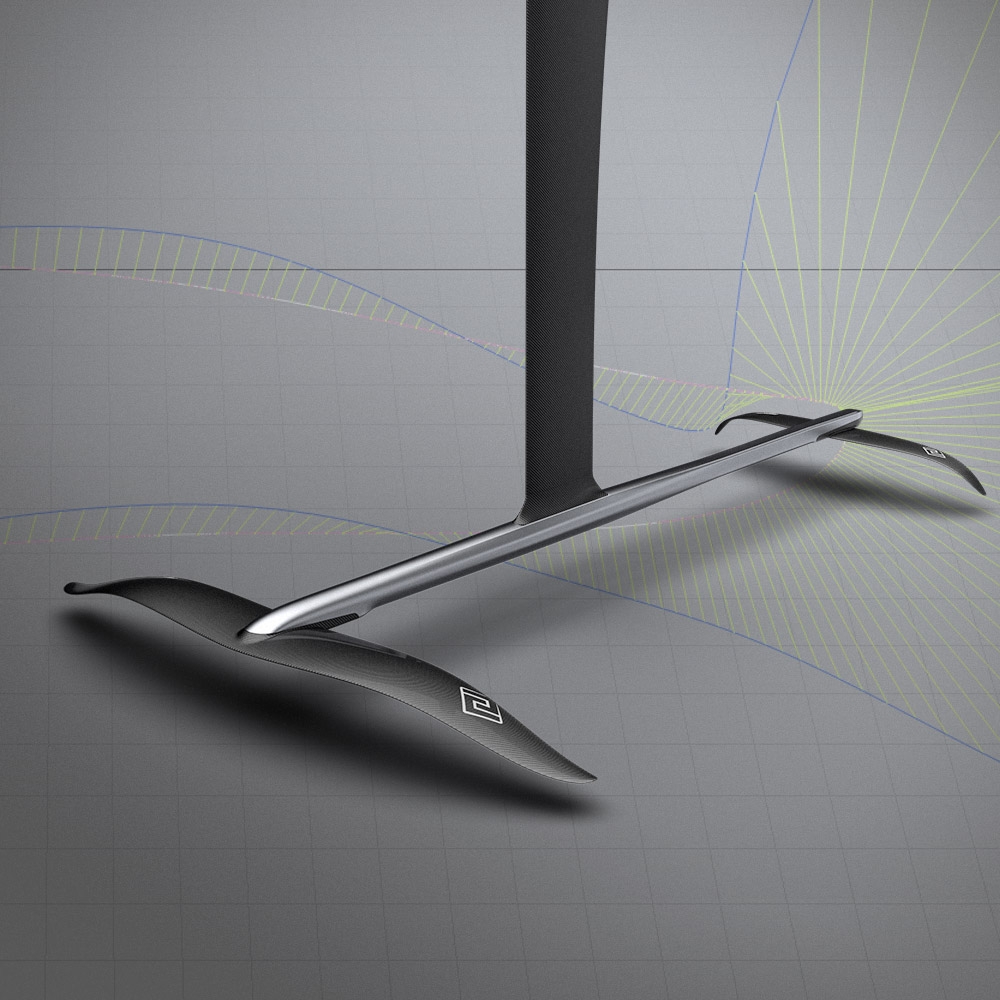

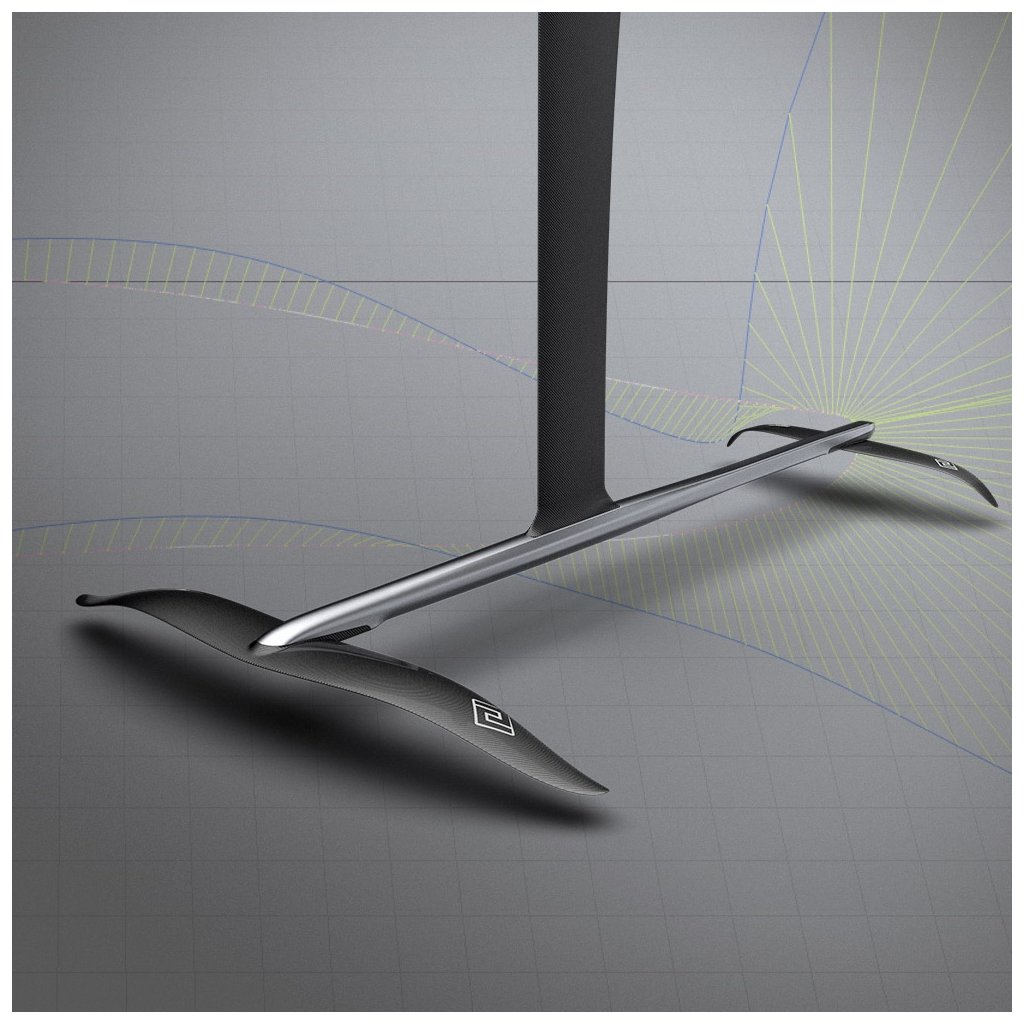

Design Goals. The target was to create high-performance foils with full compatibility across all foiling sports and disciplines — from the "whatever-it-takes world cup level" to more price-sensitive customers. The AEON has been designed for maximum control, easing the challenge of mastering 3-dimensional flight for both the skilled world cup rider and the intermediate. One connection system for wind-, wing-, prone- and kite-foiling is a massive economic advantage for multi-sport users and allows every rider to find their perfect personal setup easily.
Man vs. Machine. The massive success of the AEON in both Windsurfing and Wing-Foiling is the result of the PATRIK R&D crew's precise and hard work. Products are developed in a unique hybrid process where the human brain (knowledge) and hands (feeling) clearly lead the computer-aided design — not the other way around. Fun fact: CFD programs are created by humans and fed with data based on past practical tests, but can never calculate completely new results outside their given data range. The PATRIK crew develops and tests gear outside that software range — and the results are later used to update available CFD programs.
Single Parts vs. Sets. After the R&D team found peak performance in individual outlines and shapes, they developed individual wishes for flex and twist resulting in different "magic" combinations of AEON parts. Offering all parts separately gives top riders the freedom to find their magic setup, while intermediate riders can choose the best combo for their budget.
PWA Pro Setups
Michele Becker — PWA Slalom
95 Dim-S Mast · 400 DNA-H · 100 V2 Ti Fuselage · 150 Backwing rear +1°
95 Dim-S Mast · 450 DNA-H · 100 V2 Ti Fuselage · 150 Backwing rear +1°
95 Dim-S Mast · 550 DNA-H · 100 V1 Ti Fuselage · 160 Backwing middle +1°
Thomas Goyard — 4.5 DEFI / 8.0 One Hour
4.5: 95 Dim-S · 365 DNA-X · 100 V3 Ti · 150 Backwing rear +0.75°
8.0: 95 Dim-S · 550 DNA-H · 100 V2 Ti · 150 Backwing rear +1.25°
Alex Cousin — 6.0 PWA Slalom
95 Dim-S · 375 DNA-H · 100 V3 Ti · 150 Backwing rear +1.5°
Nico Warembourg — 4.2 DEFI / 8.0 Freerace / 4.5 Speed
4.2: 95 Dim-S · 375 DNA-H · 100 V1 Ti · 160 Backwing rear +1.75°
8.0: 95 Dim-M · 750 DNA-M · 100 V1 Alu · 195 Backwing rear +0.75°
4.5 speed: 95 Dim-S · 350 DNA-X · 100 V3 Ti · 150 Backwing rear +1.00°
Elia Colombo — 9.0 Course Racing
100 Dim-L · 900 DNA-H · 110 V1 Alu · 195 Backwing rear +1°
Overview+
Ultra-stiff frontwings with controlled flex patterns — the best thickness-to-strength ratio on the market. Rideable 50–80 cm² smaller than competitor wings. Extended low-end and perfect jibing. 9 sizes (350–900 cm²), three construction levels: DNA-M, DNA-H, DNA-X.
Construction — DNA+
DNA-M
Medium — more power, lighter winds, best value.
DNA-H
Hard — max control, high speed, PWA pro choice.
DNA-X
Xtra hard — for smallest sizes (350/365/400), too thin for DNA-M.
Specs — tabulka velikostí+
| Size | Span | AR | Use | DNA |
|---|---|---|---|---|
| 350 | 569 | 8.96 | speed/slalom | X |
| 365 | 590 | 9.54 | speed/slalom | X |
| 375 | 620 | 10.25 | speed/slalom | H/M |
| 400 | 620 | 9.61 | hi-wind slalom | X |
| 450 | 680 | 10.28 | slalom/wing | H/M |
| 550 | 750 | 10.23 | slalom/wing | H/M |
| 650 | 810 | 10.09 | low-wind/wing | H/M |
| 750 | 850 | 9.63 | course/freerace | H/M |
| 900 | 900 | 9.00 | course/freerace | H/M |
Construction+
Construction secrets are protected — but know this: PATRIK is the only brand to successfully produce hollow boards in 20+ sizes (AirInside). That composite expertise carries directly into AEON foils — thinnest and most high-aspect designs with the stiffest flex-vs-twist ratio in the industry. M8 TX30 Torx screws throughout (M6 as used by many brands was tested and found unreliable). Clear coat finish seals carbon layers — sanding voids warranty.
Concept+
One system — all foiling sports. Wind, wing, prone, kite — one connection system. From world cup level to intermediate budget. Designed for maximum control in 3D flight.
Man vs. Machine. Human brain and hands lead the design — not the computer. PATRIK tests outside the data range of any CFD software. The results later update those programs.
Single parts vs. Sets. All parts available separately for magic custom setups, or as pre-configured sets for the best budget combo.
PWA Pro Setups+
Michele Becker — PWA Slalom
400/450/550 DNA-H · 95 Dim-S · 100 V1–V2 Ti · 150/160 Backwing
Thomas Goyard
4.5 DEFI: 365 DNA-X · 8.0 One Hour: 550 DNA-H
Alex Cousin — 6.0 PWA
375 DNA-H · 95 Dim-S · 100 V3 Ti · 150 Backwing +1.5°
Nico Warembourg
4.2: 375 DNA-H · 8.0: 750 DNA-M · 4.5 speed: 350 DNA-X
Elia Colombo — Course Racing 9.0
900 DNA-H · 100 Dim-L · 110 V1 Alu · 195 Backwing
